Orlandoo Hunter OH35P01 Kit

USD $59.90

1 in stock

SKU: OHK1001 Category:
*Images for illustration only, please refer to the components list.

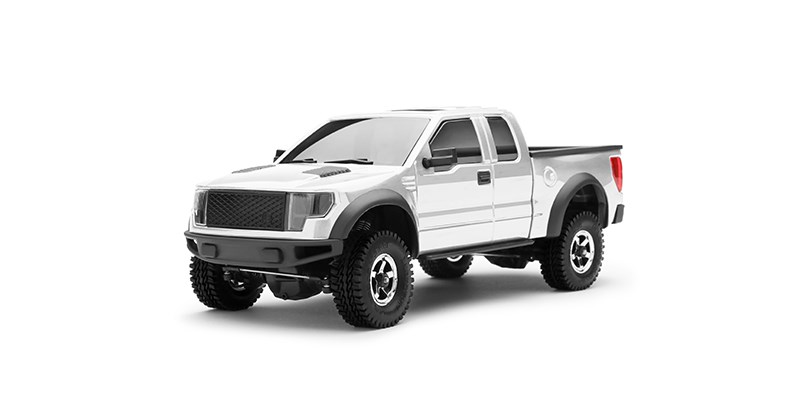

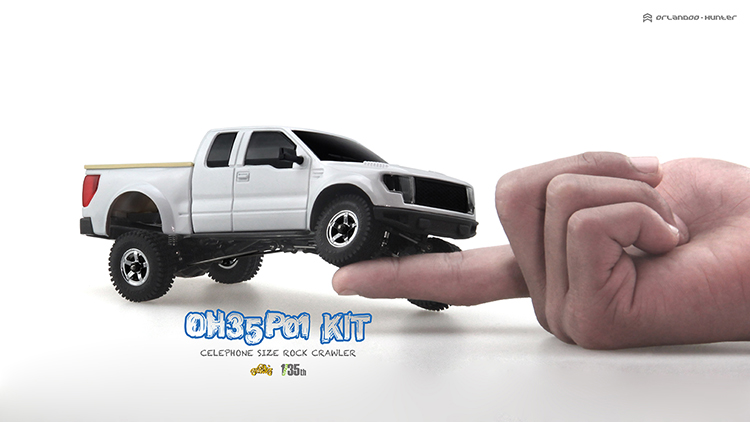

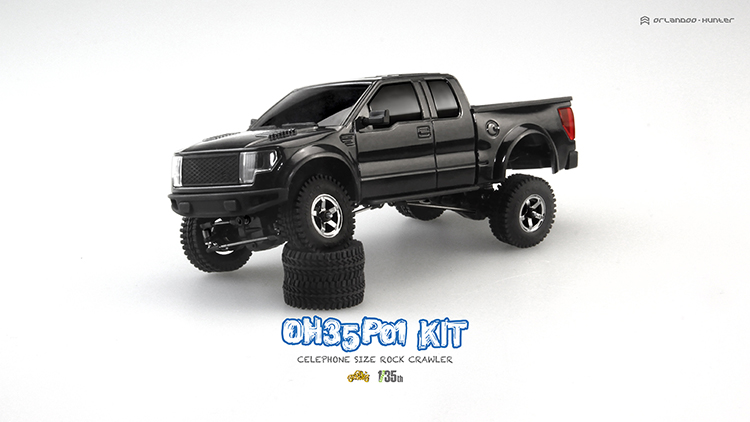

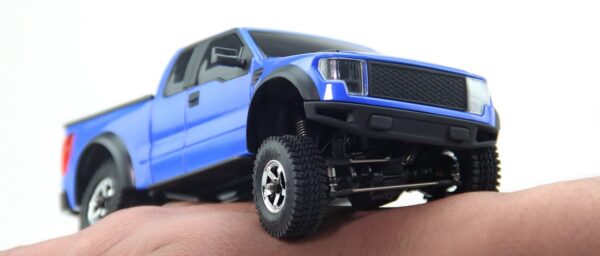

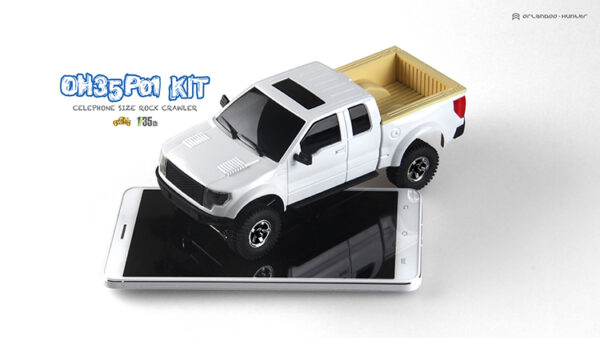

The Orlandoo Hunter OH35P01 Kit. This 1/35 scale micro crawler is an incredibly capable, hobby grade RC. It also offers fantastic scale realism right out of the box! This cellphone sized kit includes a highly detailed Ford Raptor F150 hard plastic body, super soft scale tires, scale axles and chromed wheels. But don’t let the micro size fool you! This little crawler is equipped with four-link suspension, friction shocks on all four corners and enough axle articulation to make this tiny truck a true performer.

This was the first Orlandoo kit, and offers the longest wheelbase, together with a wider track. There is some compatibility with the later Orlandoos, for example wheels, tires, rod ends, motors and electronics. However it differs in a number of significant ways. Axle casings are 5mm wider, with much beefier internals. The F150 also utilizes a plastic tray chassis rather than the metal ladder frame common to its brethren. The transfer box is integral to the chassis and uses an additional gear, to give a lower profile and CoG.

All this adds up to make a very capable crawler, and a platform that is well suited for up-scaling to utilize 1/24 plastic kit bodies. We also offer a comprehensive range of hop-up parts, including a full alloy chassis kit with counter-rotating driveshafts, alloy upgrade wheels, tires and motors. Not to mention enough scale accessories to fill a trailer!

The OH35P01 is an unassembled kit, and requires servo, ESC, motor and battery for completion. We recommend you choose Orlandoo Hunter components to complete the package, see the list below. Some modelling experience is recommended.

Features: Orlandoo Hunter OH35P01 Kit
  • Detailed hard plastic scale body
  • Micro size perfect for home or office use
  • Full time shaft drive
  • Super grippy scale tread pattern tires
  • Included building tools
  • Realistic 4-Link suspension
  • Friction dampers

Also available with Wrangler Rubicon body (OH35A01), Mitsubishi Pajero Body (OH32A02) and Defender D110 body (OH32A03)

Specifications: Orlandoo Hunter OH35P01 Kit
  • Length: 170mm
  • Width: 70mm
  • Height: 63mm
  • Tread: 58mm
  • Wheelbase: 105mm
Needed To Complete:

Kit assembly may require a few holes to be drilled and some parts may need to be slightly sanded or trimmed to get a perfect finish.
Complete and painted truck shown for illustrative purposes only. Assembly and painting required.

Additional information

Weight 349 g
Dimensions (Packaging Size) 270 × 170 × 80 mm


Instruction Manual
