N20 Geared Motor for Orlandoo Hunter

USD $5.40

SKU: N/A Category:
*Images for illustration only, please refer to the components list.

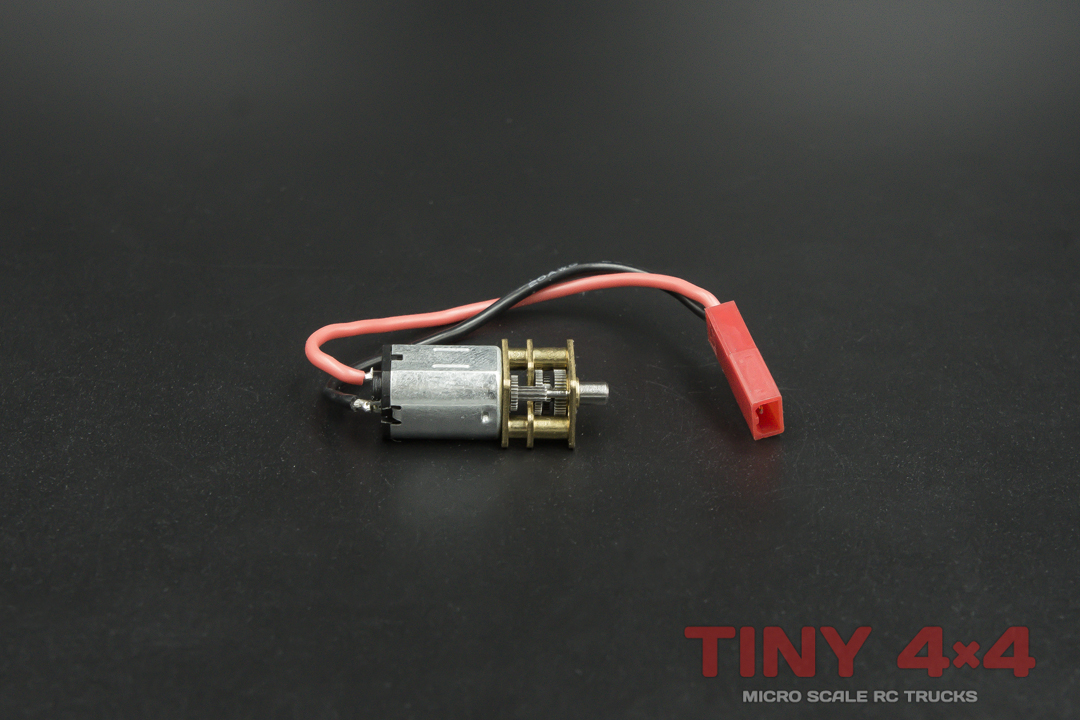

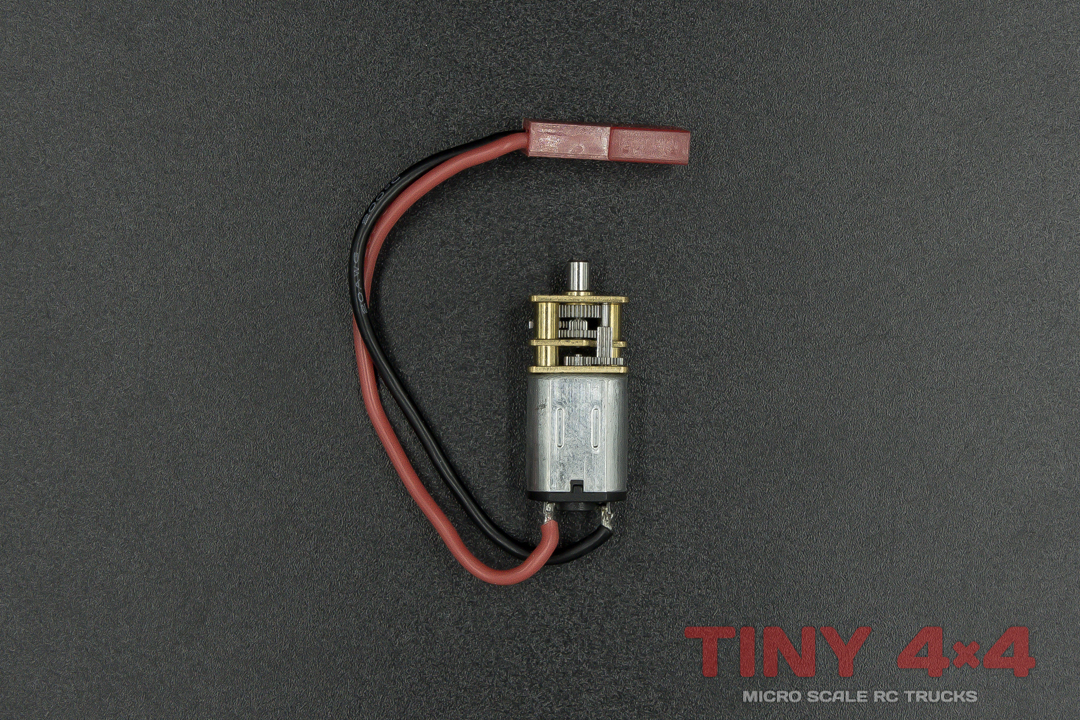

N20 Geared Motor for Orlandoo Hunter. Replacement brushed gear motor for Olandoo Hunter F150, Jeep, D110 and Pajero.

We offer multiple versions to choose from, from 150rpm all the way up to 3000rpm. The NS150 gives 150rpm at 6v for maximum crawling ability – very high torque with a lower top speed. The NS200 and NS300 give 200rpm and 300rpm at 6v respectively. These two motors offer a balance of wheel speed and climbing ability – high torque with greater top speed. If you want to go faster, try the NS500 – the torque is still acceptable but your rig will be able to run around near to walking pace, with some loss of low-speed control. Higher RPMs trade torque for speed much more noticeably, but are well suited for go-fast rigs.

You can also select the standard red RCY – style plug, compatible with the TS0001 ESC, or the white 2PH plug compatible with the D4L Radio set. Choose your weapon!

Specifications: N20 Geared Motor for Orlandoo Hunter
  • Motor Type: Brushed
  • Rated Voltage: 6v
  • Gearbox Ratio: 150rpm, 200rpm, 300rpm, 500rpm, 800rpm, 1200rpm, 2000rpm or 3000rpm
  • Output Shaft Diameter: 3mm ‘D’ Shape
  • Output Shaft Length: 4mm
  • Plug Type: JST RCY (stock) or JST 2PH (D4L)

PLEASE NOTE: These motors are not suitable for the AutoRC Geko24 due to the length of the output shaft. We offer N20 geared motors and also the longer can N30 geared motors, both with longer shafts suitable for the Geko.

Additional information

Weight 20 g
Dimensions (Packaging Size) 95 × 85 × 16 mm

150, 200, 300, 500, 800, 1200, 2000, 3000
