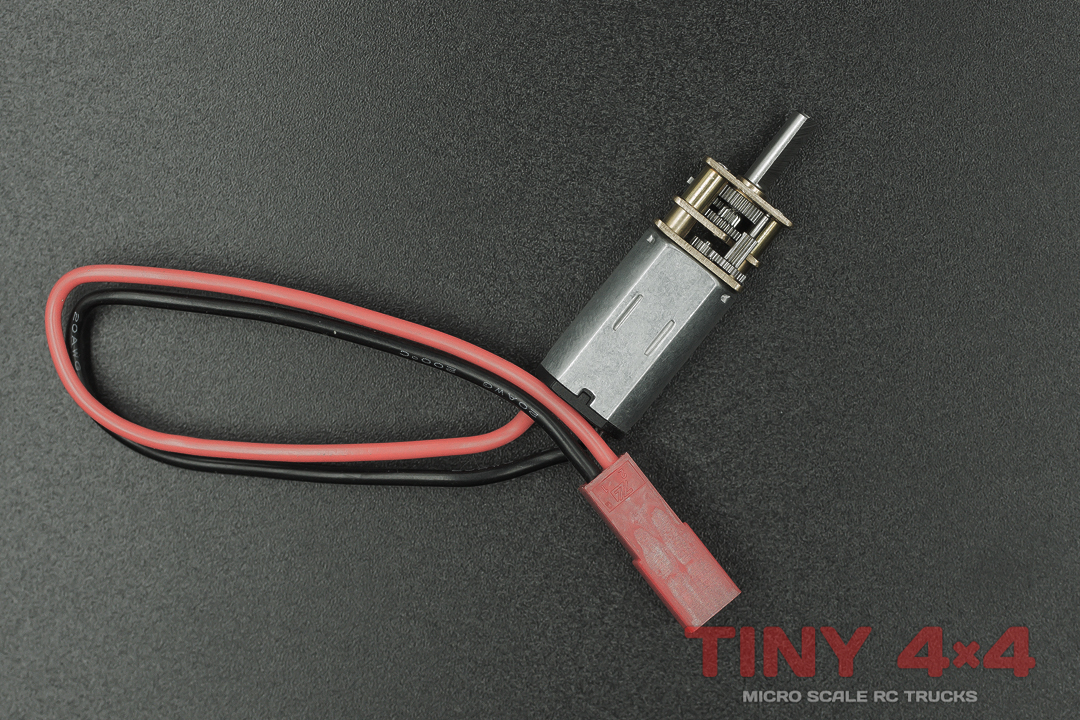

N30 Geared Motor

USD $8.90

SKU: N/A Categories: ,
*Images for illustration only, please refer to the components list.

Description

N30 Geared Motor 150rpm – 2000rpm. Upgrade your Orlandoo or Geko24 with the bigger, beefier brother of your standard N20! Now available in a wider range of RPMs to suit your taste. Choose 150rpm for creeping over the rocks with unstoppable torque, 300rpm for a balance of wheel speed and torque, 500rpm for a nippier drive or go the flat out with the 1000rpm and 2000rpm options!

Because the N30 shares the same can diameter as the N20 motor, it is more or less a bolt-on replacement. The longer can means you will see a noticeable increase in torque. Just make sure you have space in your chassis for the extra length – Orlandoo Jeep owners need not apply!

This motor uses the same 3mm ‘D’ output shaft as the N20. Reduction gearboxes are also interchangeable (dependent on pinion size) between the two motor types.

PLEASE NOTE: The N30 gearbox comes with either an 4mm (short) or 8mm (long) output shaft. The 8mm is a straight fit in the Geko24 but Orlandoo owners will need to use the 4mm shaft version.

Specifications: N30 Geared Motor
  • Dimensions:W10mm x H12mm x L40mm
  • Motor Length: 22mm
  • Gearbox Length: 10mm
  • Output Shaft: Dia 3mm ‘D’ / Length 4mm or 8mm
  • Nominal Input: 6v
  • Speed: choose 150rpm, 300rpm, 500rpm, 1000rpm or 2000rpm

Additional information

Weight 19 g
Dimensions (Packaging Size) 85 × 75 × 13 mm
Category

Electronics

Manufacturer

ORCS

Model

DooRok, Geko24 V3, Geko24 V4, Geko24 V5, Kuro King XR01, OH32A02, OH32A03, OH32M01, OH32M02, OH32X01, OH35A01, ORCSA01

RPM

150, 300, 500, 1000, 2000, 3000

Shaft

Short, Long

Color

Silver

Scale

1/20 – 1/18, 1/25 – 1/24, 1/35 – 1/32
