Sale!

D4L 2.4GHz 4in1 Radio System

USD $59.90 USD $54.90

The Orlandoo Hunter D4L Radio System provides multi-functionality for micro sized RC vehicles. It features a 4-in-1 receiver unit with a built in ESC, sound unit and light controller. Sound and light can be controlled from the the transmitter.

4 in stock

SKU: RTX1001 Category:
*Images for illustration only, please refer to the components list.

Description

The Orlandoo Hunter D4L 2.4GHz 4in1 Radio System provides multi-functionality for micro sized RC vehicles. It features a 4-in-1 receiver unit with a built in ESC, sound unit and light controller. Sound and light can be controlled from the the transmitter. This radio system is a must-have accessory to simplify your electronics setup, while adding increased functionality and simulation to your favorite micro RC!

The package includes a speaker and all the necessary LEDs to light up your micro RC. You also get all the various wires, plugs and heatshrink required for you to solder yourself. The light controller also comes with a separate jumper board – attach this to your RC bodyshell for easy one-plug removal.

Features

Integrated functions include:

  • 2.4GHz Receiver
  • ESC with forward, reverse and brake function
  • Sound module simulates engine start up, forward, reverse, idle and engine shut down sounds
  • Light controller provides headlights, auxiliary lights, hazard warning lights, turn signals, brake lights and reverse lights

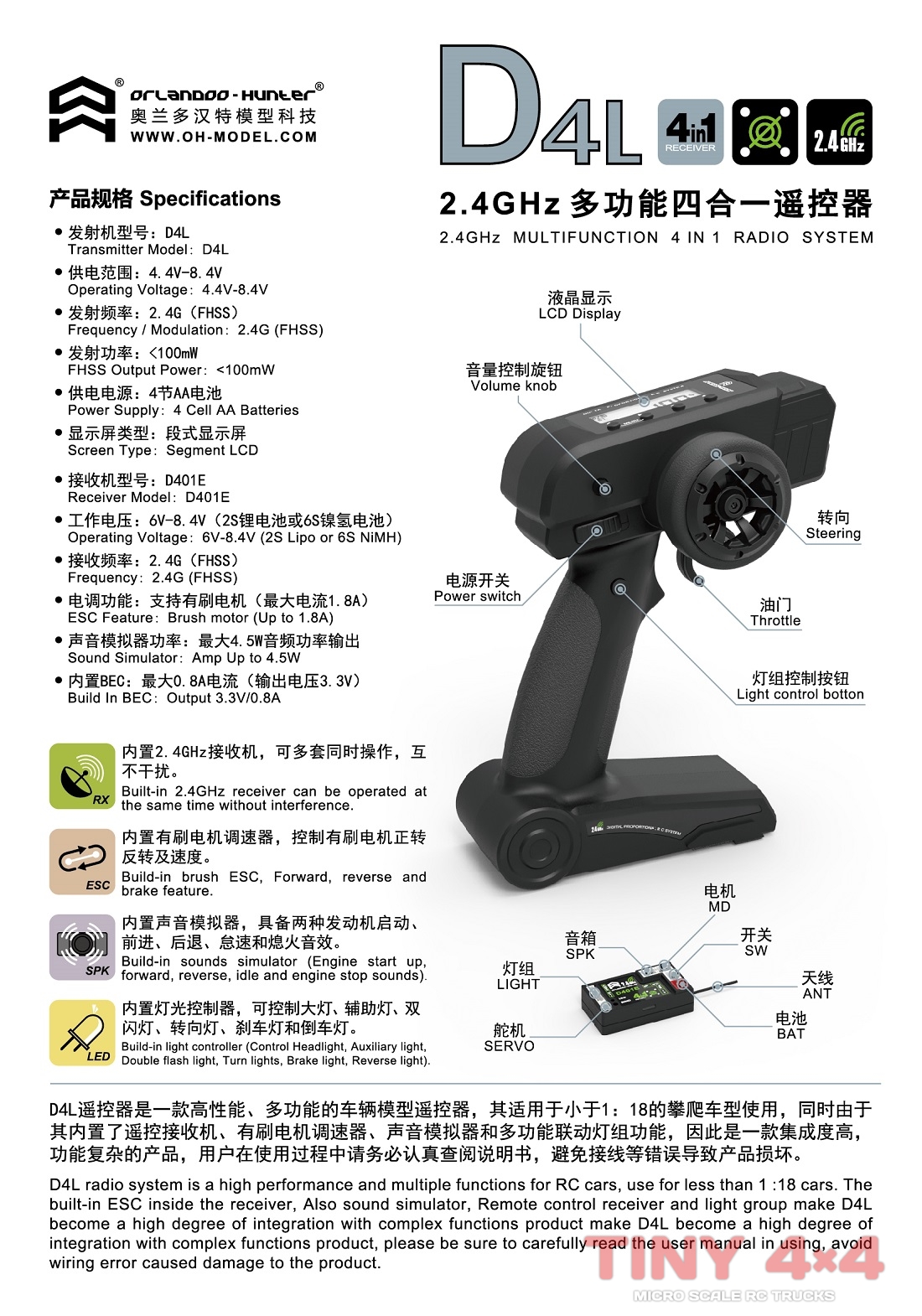

Specifications: D4L 2.4GHz 4in1 Radio System

Transmitter:

  • Operating Voltage: 4.4-8.4V
  • Frequency: 2.4GHz
  • FHSS Output Power: 100mW
  • Power Supply: 4 AA Batteries
  • Screen Type: Segment LCD

Receiver Module:

  • Operating Voltage: 6V-8.4V (2S LiPo or 6 cell NiMH)
  • ESC: Brushed Motor up to 1.8A
  • Sound Simulator: Amp up to 4.5W
  • BEC: Output 3.3V/0.8A
  • Low voltage cut off: @6V

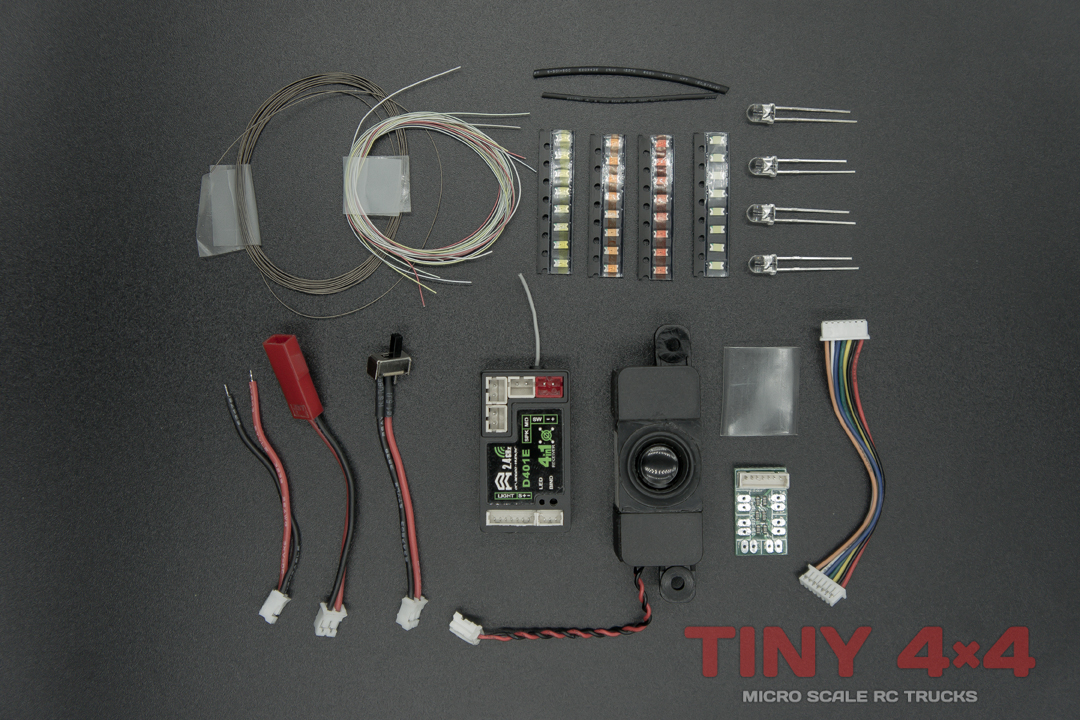

Includes

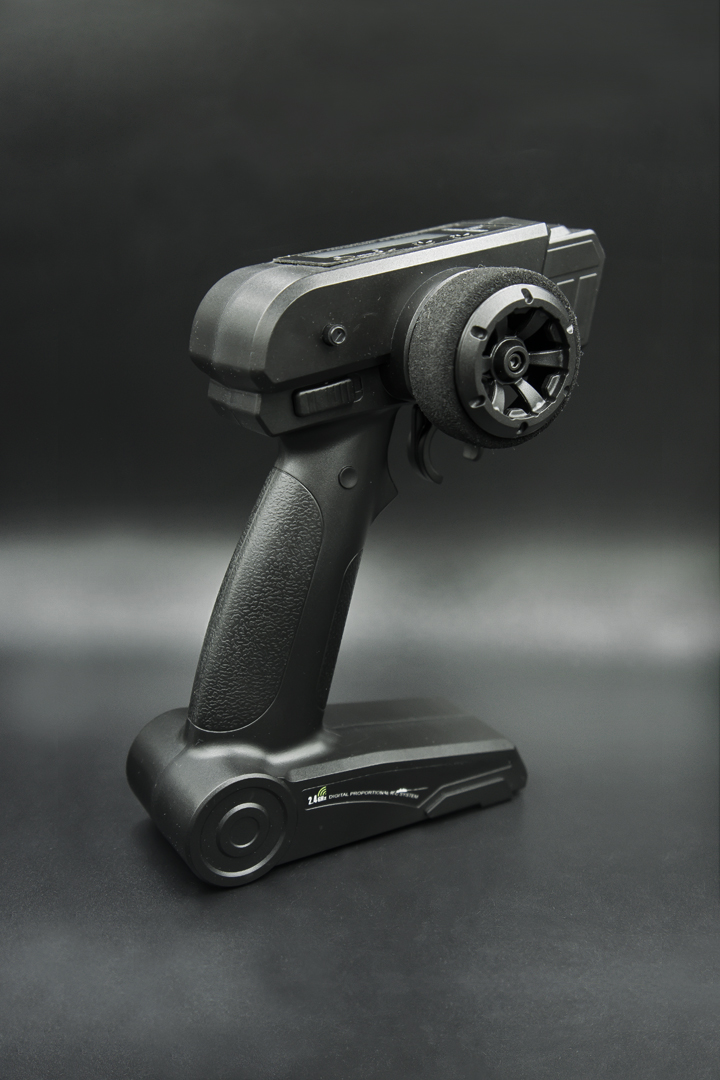

  • (1) D4L Transmitter

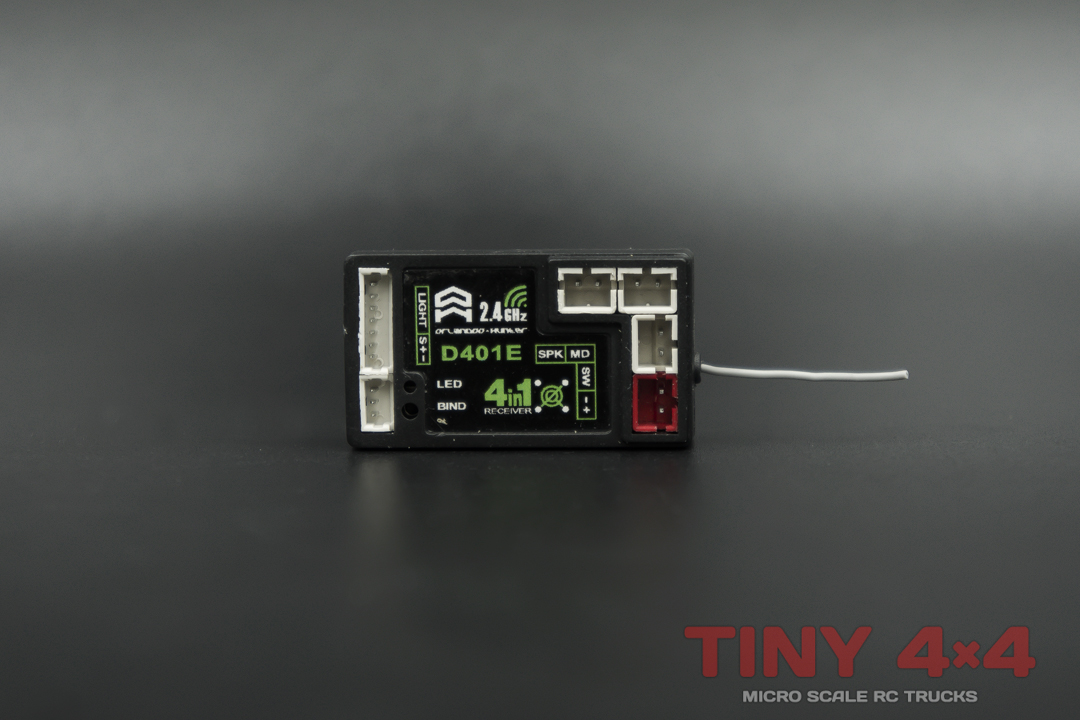

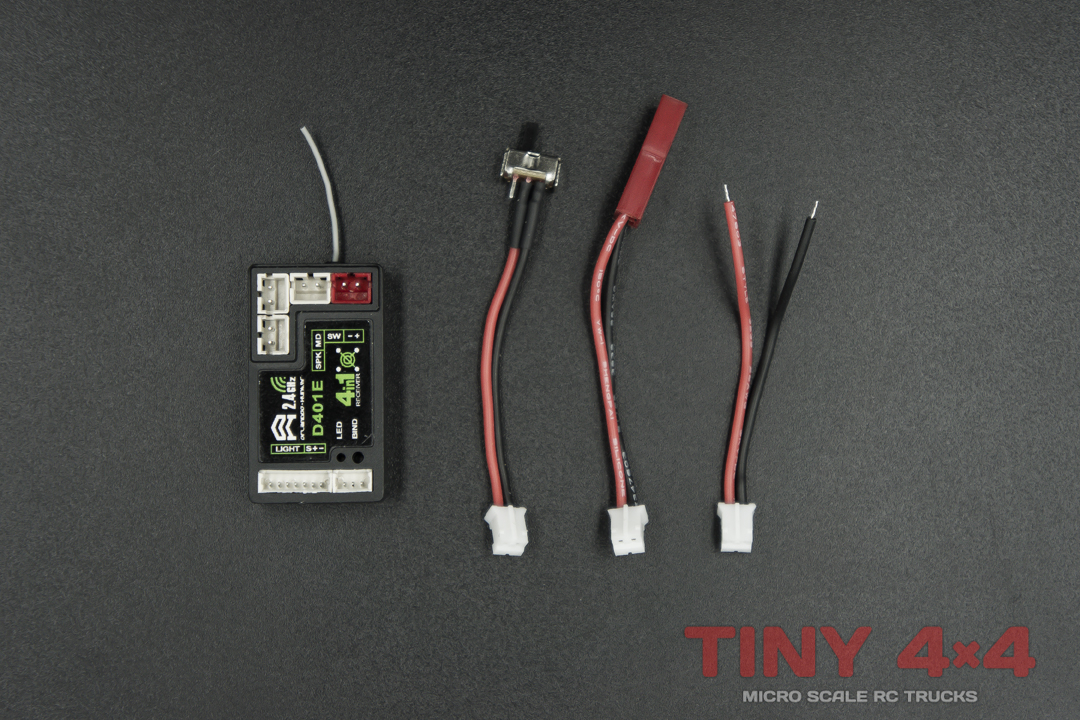

  • (1) D401E 4-in-1 Receiver
  • (1) Light Expansion PCB
  • (1) Motor lead
  • (1) JST adapter
  • (1) On/Off Switch

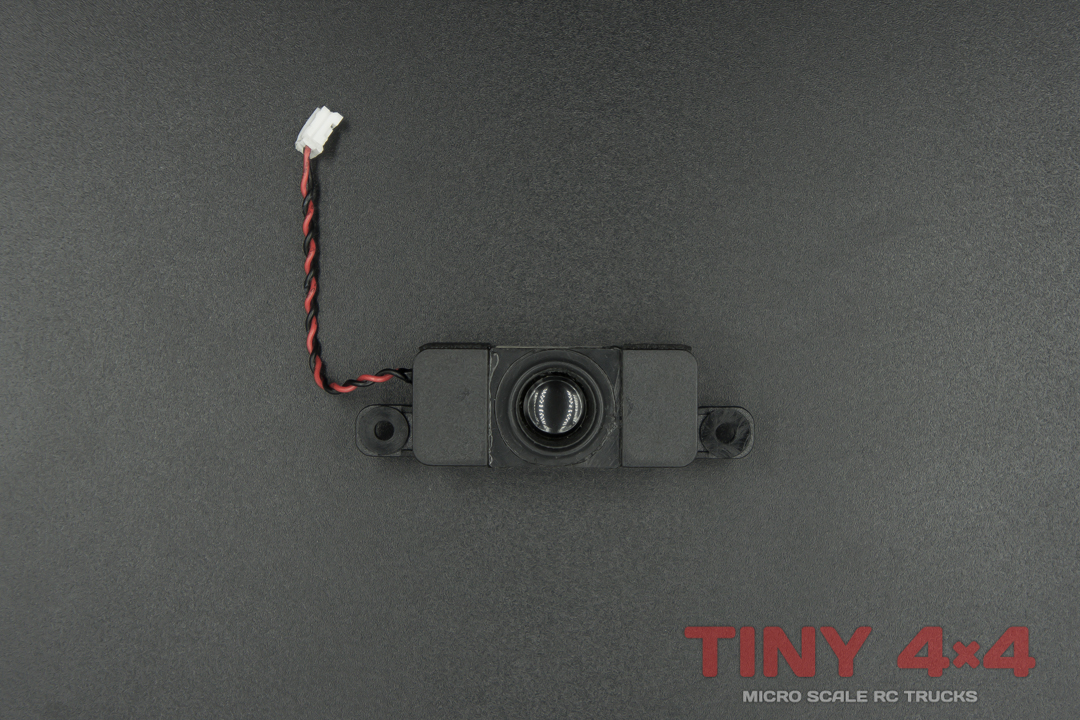

  • (1) Speaker box

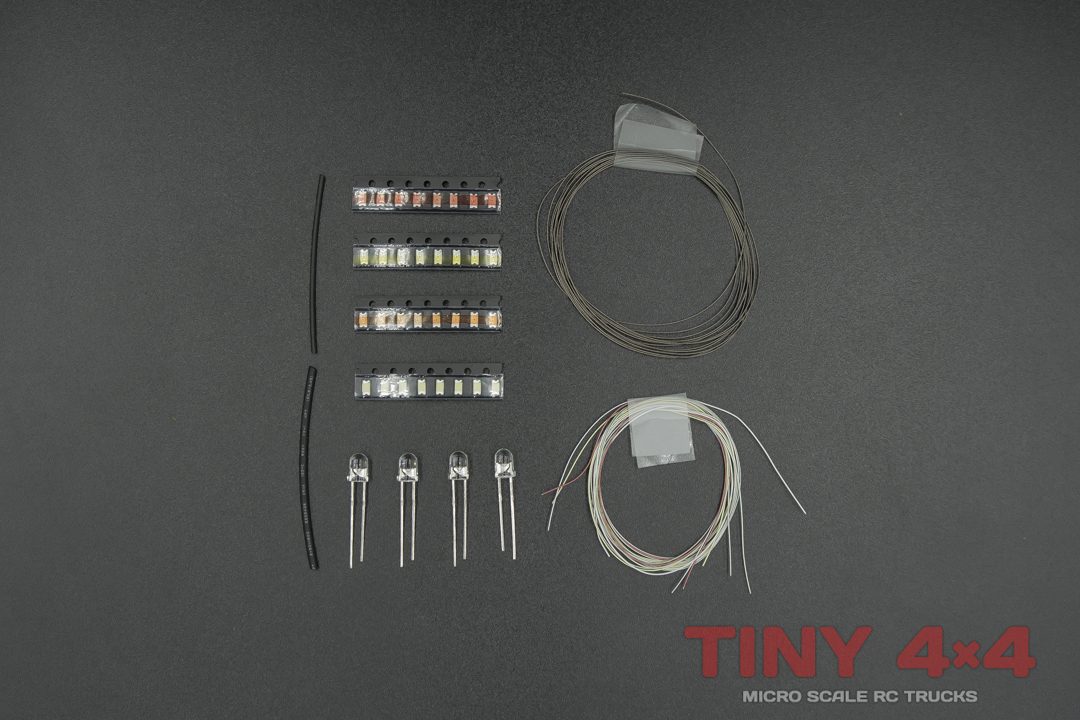

  • (4) 4mm white LED
  • (1) SMD 4 Color LED
  • (1) Seven color teflon wire
  • (2) Heat shrink tube
  • (1) Transparent Heat shrink tube

Additional information

Weight 550 g
Dimensions (Packaging Size) 250 × 200 × 110 mm
