TS0001 Orlandoo Electronic Speed Controller ESC

USD $12.50

Out of stock

SKU: HSP1018 Category:
*Images for illustration only, please refer to the components list.

Description

TS0001 Orlandoo Electronic Speed Controller ESC. This compact 2S capable ESC offers good low speed control and is rated at 8 Amps. Suitable not only for the Orlandoo F150, Jeep and Pajero, but also for larger 1/24 or 1/20 scale micros. It can easily handle larger can motors and the loads produced by the micro RC ‘standard’ 1 inch wheels.

As well as standard forward/reverse functions, this ESC also provides an additional lead for powering the Orlandoo low voltage servo. It also packs in an LED light controller, operated via the third channel on your radio transmitter. You can wire the included 4mm front and SMD rear LEDs directly to the ESC’s low voltage outputs without resistors. As an added bonus, if your transmitter’s third channel has a 3-position switch option, you also have switchable off / low beam / high beam function!

The ESC does not provide a drag brake function. The gear reduction box on the N20 motors provides adequate drag braking.

Specifications: TS0001 Orlandoo Electronic Speed Controller ESC
  • Dimensions: L23mm x W22mm x H6mm
  • Input: 3.7v – 7.4v
  • Output: 8A
Functions:
  • Forward / Reverse
  • Low voltage servo Output
  • 3-position LED Light Controller (Off/Low/Hi)

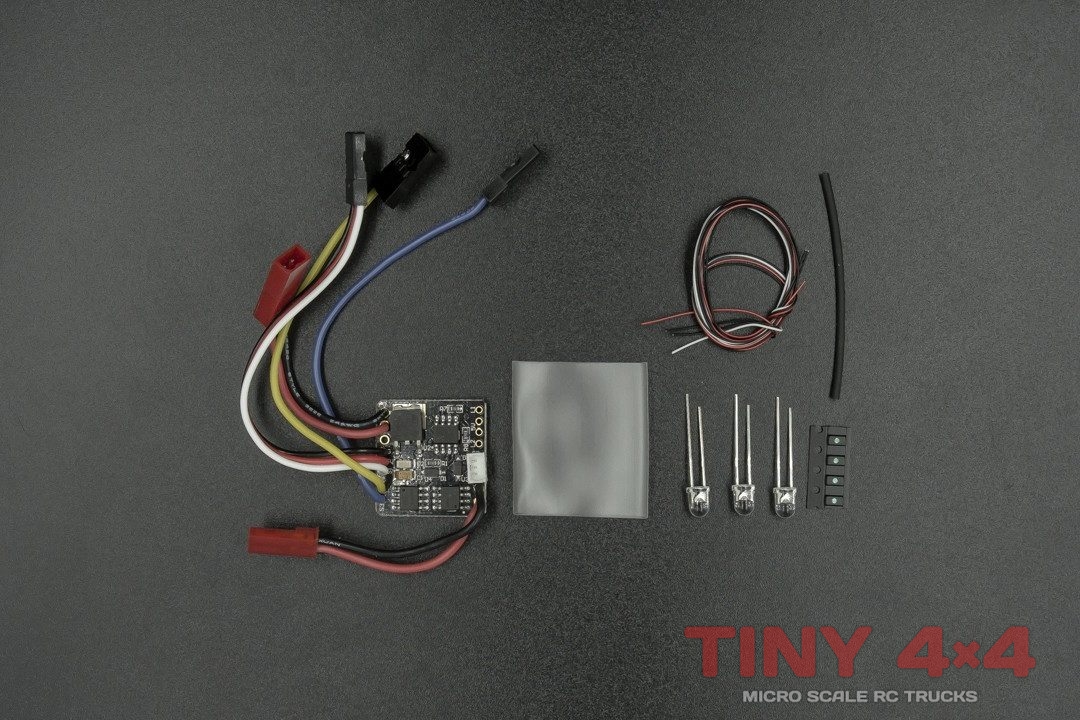

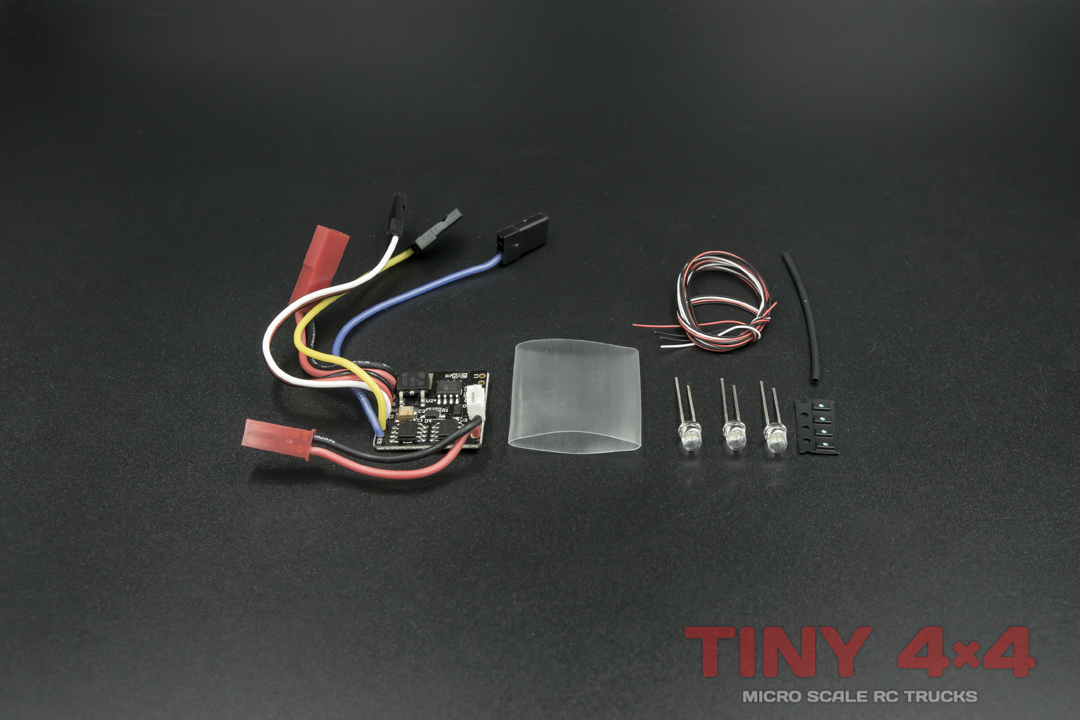

Included:
  • 1x TS0001 ESC
  • 2x 4mm White LED
  • 4x 3020 Red SMD LED

Additional information

Weight 21 g
Dimensions (Packaging Size) 115 × 85 × 17 mm
