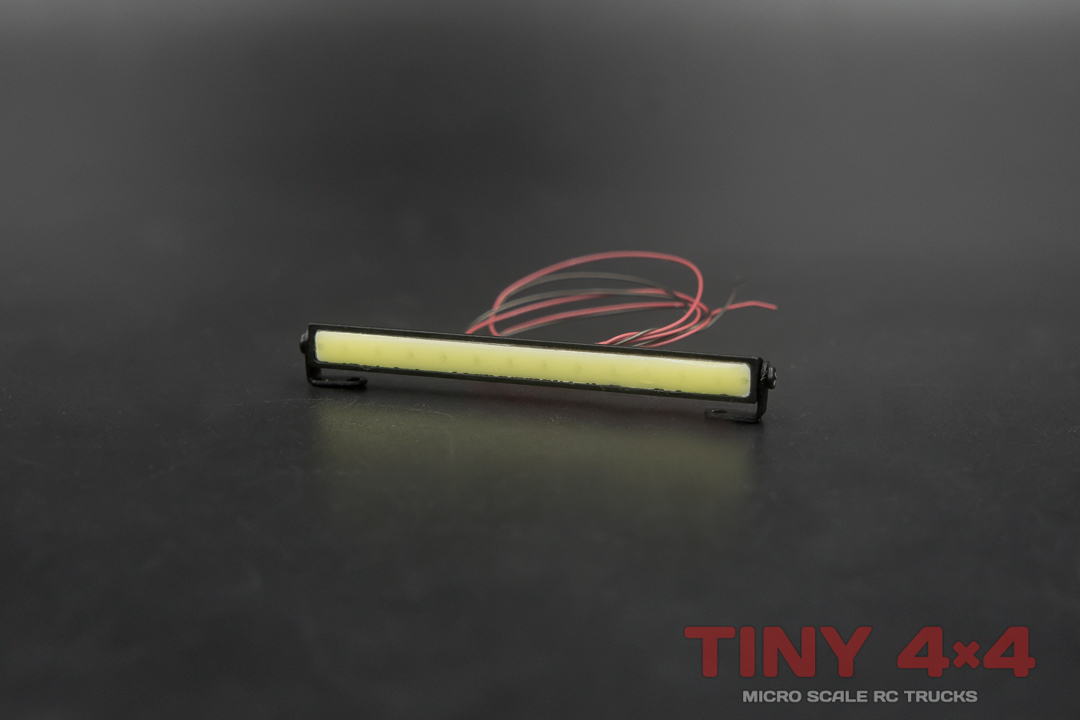

MX0034 3V Universal Lightbar. Let there be light! With no less than 12 separate pure white SMD LEDs, this lightbar will not disappoint. Pre-installed and pre-wired, all you need to do is connect the ultra-fine wires to a 3-volt power source. Then attach the mounting brackets with the supplied hardware and you are good to go!
The installed weight is a meagre 1.5 grams, so no need to worry about affecting your vehicle’s CoG. The wires are fixed to the slimline sturdy black anodized alloy case to ensure the solder joint does not break. The right-angled alloy mounting brackets allow you to aim the beam up or down once installed. You get an additional pre-wired male/female PH2.0 connector block to use if required
Specifications: MX0034 3V Universal Lightbar
- Color: Black
- Construction: Alloy
- Weight: 1.5g
- Voltage: 3 volts
- Power rating: 3 watts
- LED Color temperature: 5750K (pure white)
- Line length : 20mm

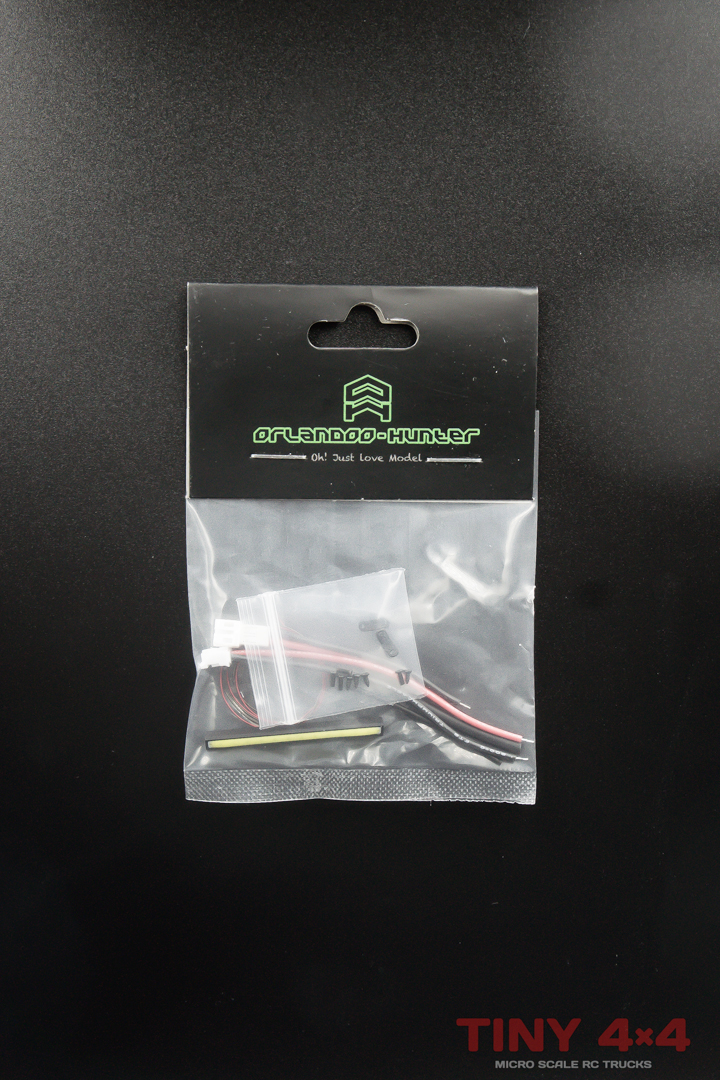

- 1x light bar (pre-wired
- 2x mounting bracket
- 1x PH2.0 male (pre-wired)
- 1x PH2.0 female (pre-wired)
- 2x heat shrinkable tube
- 4x 11203 M1.2 x 3mm machine screw
- 4x 01203 M1.2 x 3mm self-tapping screws
Installation: MX0034 3V Universal Lightbar
- Use a 1.0mm drill to make holes in your body. Hole spacing is 34mm.
- Use the self-tapping screws to mount brackets to a plastic body.
- Use the machine screws to attach the lightbar to the mounting brackets.
- connect the lightbar leads to a 3v power source. SOLDERING REQUIRED
